Product Name: Touch Screen Whiteboard Display
Color: Black
Use for: Teaching,Meeting, Advertise play,TV
Powered: 110-240V
Screen: 55-110 inch Optional
Product Size: 50-150KG
Package: 1850*1170*215mm
Version: 55inch, 65/75 inch, 86 inch, 100/110inch
Product Features
● Interactive Engagement: The interactive whiteboard display fosters active participation, engaging students and enhancing learning outcomes.
● HD Clarity: With high-definition visuals, the display ensures every detail is crisp and clear, optimizing the learning experience.
● Touch-Friendly Interface: The intuitive touch-screen interface allows seamless interaction, making learning more fun and engaging.
● Multi-Media Integration: Easily integrate audio, video, and other multimedia content to enrich lessons and enhance understanding.
● Flexible Annotation: Annotate and highlight content directly on the screen, enhancing the effectiveness of explanations and discussions.
Product Description
● Real-Time Collaboration: Facilitates real-time collaboration between students and teachers, promoting active learning and knowledge sharing.
● Environmental Friendliness: The display offers energy-saving features, contributing to a sustainable learning environment.
● Durable & Reliable: Built with high-quality materials, the display is designed for durability and reliability, ensuring long-term use.
● Easy Connectivity: Seamlessly connect to various devices, allowing teachers to present content from multiple sources with ease.
● Extensive Support & Resources: Comes with comprehensive support and a vast library of educational resources, making it a one-stop solution for teaching needs.
Basic Product Functions

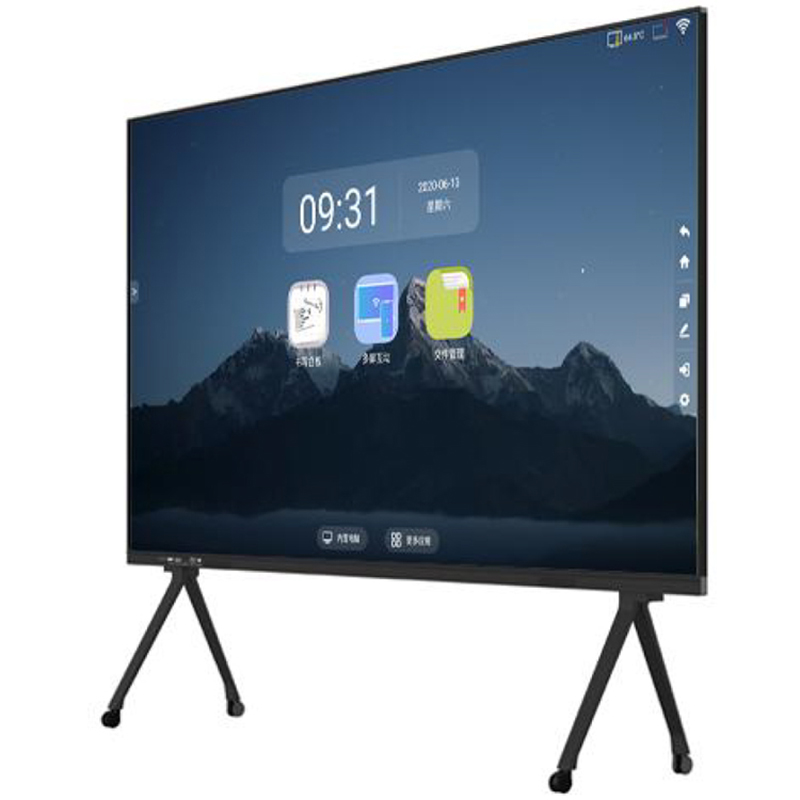

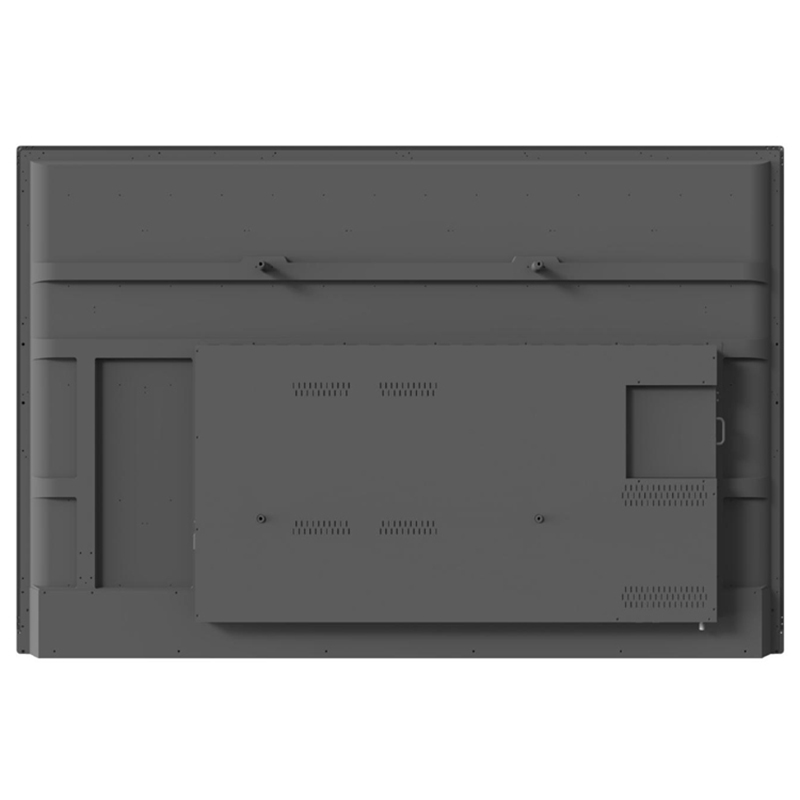

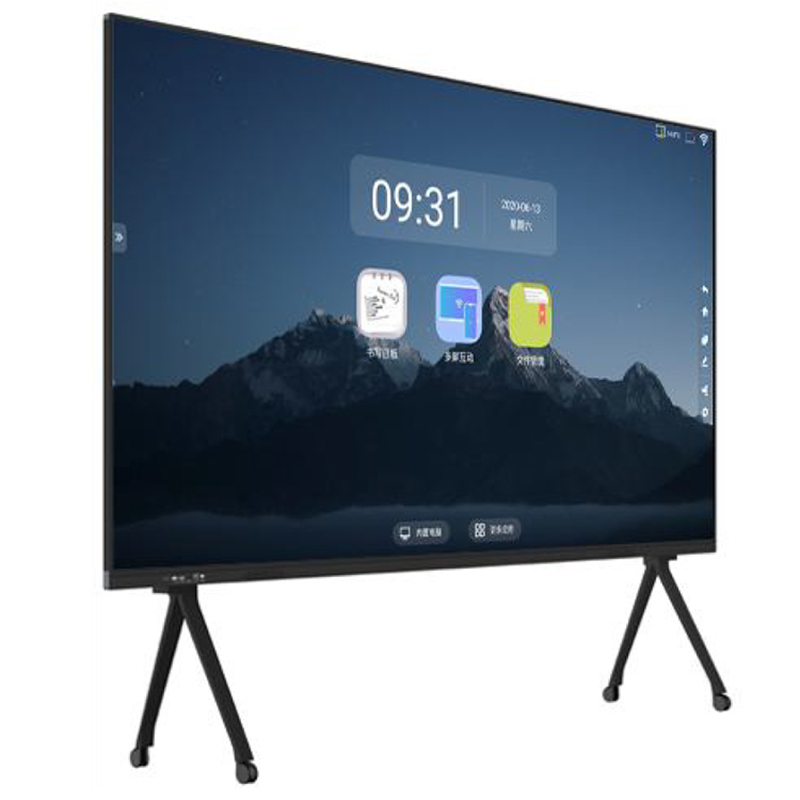

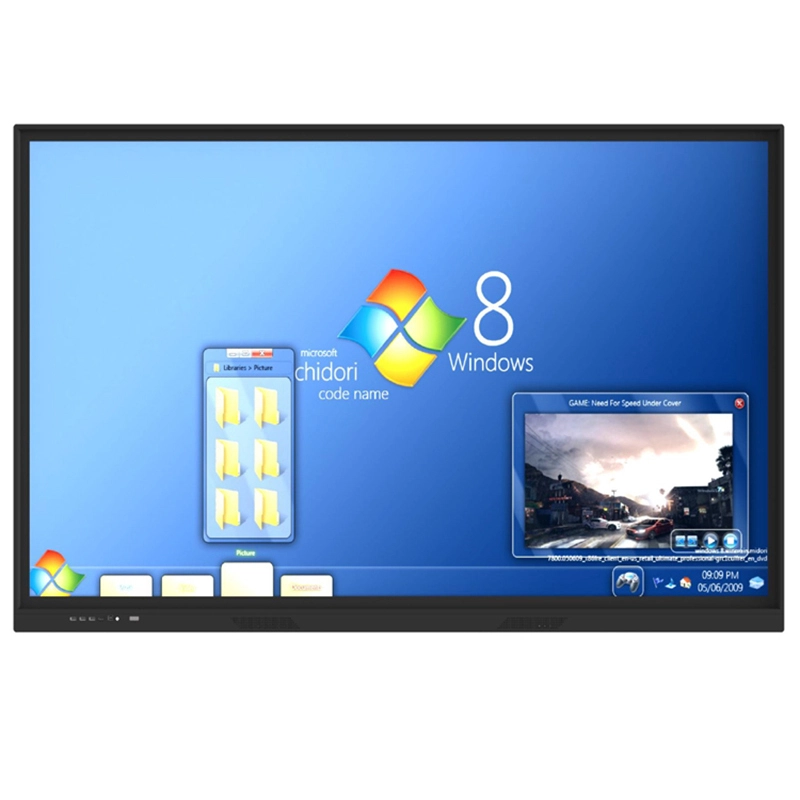

Product display
(The product is updated and upgraded from time to time, and the actual version shall prevail)
Product parameters
Screen size |
55"/65"/75"/85"/86"/98"/100"/110" |
Display screen type |
LCD display screen |
Physical resolution |
55 inches 1920 (H) x 1080 (V) (2K/4K optional) 65 inches -110 inches 3840 (H) x 2160 (V) |
Display color |
10bit, 1.07B |
Refresh rate |
60 Hz |
Brightness |
320cd/m2 |
Contrast |
5000:1 |
Viewing angle (degree) |
178 degree |
Display screen protection |
4mm fully tempered high explosion-proof glass |
Backlight lifespan |
50000 hours |
Android |
|
CPU |
Amlogic T982 64bit -GPU ARM Mali-G52 MP2(2EE) max:1.9Ghz |
System |
Android 11.0 embedded system |
ROM |
DDR3 4G memory (optional 8G) |
Storage |
32GB storage space (optional high-speed 128GB) |
External storage |
SD card can expand up to 128GB; USB 2.0/3.0 supports up to 1T |
Details |
|
Image format |
PAL/SECAM/NTSC (Option) |
Sound standard |
BG/DK/I/L |
Store |
200 channal |
Decoding |
3D digital comb filters, 3D image motion denoising, 3D motion adaptive comb filtering, etc |
Speaker specification |
10W/8 ohms x 2 speakers |
Audio feature |
balance, automatic volume control, surround sound, equalizer |
Input Port |
AV port: 1 group (AV IN: 1 group) |
Color difference terminals |
1 set (three in one port) |
VGA IN: |
1 set |
VGA AUDIO IN |
1 set |
RJ45 |
1 group |
TV port |
1 set |
TOUCH PORT |
2 groups (including 1 front channel) |
HDMI ports |
3 sets (including 1 front channel) |
USB ports |
5 sets (including front USB 2.0 * 2, USB 3.0 * 1 |
Output port |
|
Coaxial port |
1 set |
HDMI OUT |
1 set (customized solution, not standard) |
Earphones |
1 set |
Communication port RS232 |
1 set |
Touch Screen details |
|
Touch embedding method |
Built in integrated, non external |
Touch sensing technology |
Infrared induction recognition touch technology (20 points) |
Writing method |
Fingers, touch pens, or other non transparent objects with a diameter of no less than 5mm (multi-point 8mm) |
Cursor speed |
120 points/s |
Positioning accuracy |
over 90%, touch area of ± 2mm |
Communication interface |
B-type USB male |
Touch resolution |
32767 * 32767 |
Touch count |
Theoretically infinite |
Computer response |
system automatic recognition; ≤ 15ms |
Driver |
UVC,free driver |
Others |
|
TV functions |
Cable TV viewing and playback function |
USB multimedia file playback function |
|
Android 11.0 embedded system |
|
Touch function |
Supports 20 point computer touch operation |
Supports image enlargement, reduction, and rotation |
|
After supporting the switching of various signal sources, the touch function is available |
|
Support controlling signal sources, volume, and other menus through touch while displaying the status of each signal source |
|
Other functions |
Remote control TV power on function |
Support touch menu, enabling return button, menu operation, task preview, channel switching, and volume control |
|
Functions such as adjustment, quick electronic whiteboard operation, etc |
|
Safe mode: Can control USB usage permissions on smart tablets, prohibit or allow USB data reading |
|
To prevent accidental touch, a touch lock can be set for the smart tablet to lock the PC touch function |
|
Using application encryption and soft central control: Accessing the screen touch central control through gestures, achieving seamless communication between any message |
|
Under the channel number, it can achieve return, homepage, process termination, signal switching, annotation, brightness, |
|
Supports wireless WiFi and wired LAN |
|
Supports Android on/off, PC controlled by Android, integrated screen on/off, system on/off, energy-saving three |
|
Integrated support with embedded high-definition camera for taking photos and recording functions (requires optional support, optional solution) |
|
Shell and appearance |
aluminum alloy frame corner block design, front button, front port |
Package |
|
Name |
qty |
Interactive intelligent teaching all-in-one machine |
1 |
touch pen |
1 |
manual |
1 |
1.8-meter power cord |
1 |
remote controller |
1 |
Wall mounted parameters
Wall mounted parameters |
||||
Name |
Size |
Load bearing |
Material |
Quantity |
Chassis fixing plate |
850*195*31mm |
MAX 100KG |
SPCC |
1 PCS |
Hook installation plate |
600*30*12mm |
MAX 100KG |
SPCC |
2PCS |
Wall hanging thickness 33-43mm |
Wall mounted parameters
Wall mounted parameters |
||||
Name |
Size |
Load bearing |
Material |
Quantity |
Chassis fixing plate |
850*195*31mm |
MAX 100KG |
SPCC |
1 PCS |
Hook installation plate |
600*30*12mm |
MAX 100KG |
SPCC |
2PCS |
Wall hanging thickness 33-43mm |
Product Size
