A self-service ordering machine is an ordering device based on digital technology that allows customers to choose and order the meals they want. They are usually located at the restaurant entrance or dining area and are convenient, personalized, efficient and digital. Self-service ordering machines are suitable for various dining scenarios, including fast food chains, cafeterias, corporate canteens and hotel breakfast rooms. Self-service ordering machines bring many advantages, such as saving time, reducing error rates, increasing sales, cost savings and data analysis, creating a better dining experience for customers and restaurants. With the continuous advancement of technology, self-service ordering machines will be widely used in more restaurants and dining places.

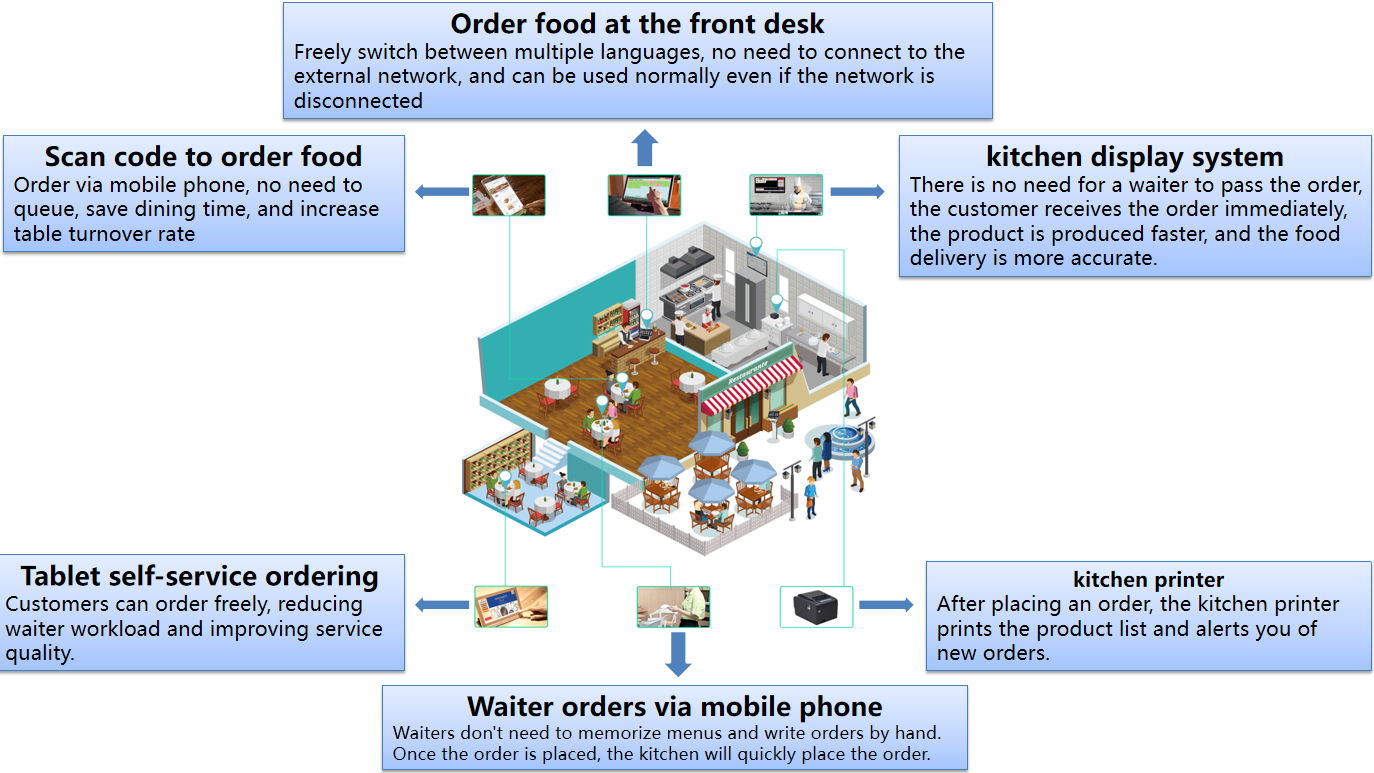

Schematic diagram of self-service ordering and cashier system

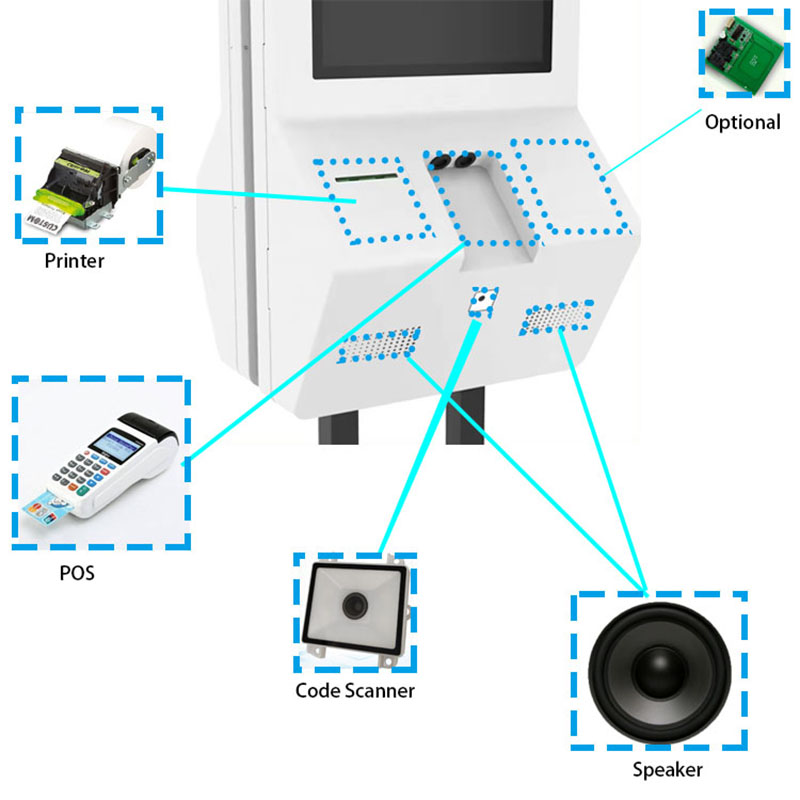

Self-service ordering machine hardware components
Product Specifications
Our ordering system can help you improve work efficiency and increase table turnover rate.
Computer Configuration |
|||
operating system: Windows7/8/10/11 | |||
CPU: | Celeron J1900/Core i3/5/7 | RAM | 8G |
Storage | 64G/128G |
Network |
RJ45 Ethernet/WIFI |
Speaker | 5W*2 | USB Port | USB 2.0 port/3.0 port |
Touch Screen |
|||
Touch Type: Projective capacitive touch | Response Time: 10ms | ||
LCD |
|||
Type |
TFT-LCD |
Contrast Ratio |
1200:1 |
Screen Size |
32inch |
Response Time |
8ms |
Max Resolution |
1920X1080 |
Viewing Angle |
H178°V178° |
Aspect Ration |
16:9 | Dispplay Colors |
16.7M |
Brightness |
400cd/m² |
Refresh Rate |
60Hz |
Panel Life |
30000 hours |
||
Functional Devices |
|||
Printer |
Thermal printer with cutter Paper roll: 80mm |
Camera |
Optional |
Scanner |
2D,Area-imaging scanner |
Card Reader |
Provide it yourself |
Power |
|||
Voltage |
100-240VAC,50/60Hz |
Power consumption |
<120W |
Enclosure |
|||
Material |
SPCC |
Surface |
Powder coating |
Overall Size(mm) |
W540.5*D317*H1302.5(Wall mounting) W548*D515*H1912.5(Single screen flooring) |
Net Weight |
47Kg(Wall mounting) 89Kg(Single screen flooring) |
Package(mm) |
W1475*D475*H790(Wall mounting) W1950*D535*H790(Single screen flooring) |
Gross Weight |
86Kg(Wall mounting) 129Kg(Single screen flooring) |
Application |
|||
Working Temperature |
0~40℃ |
Storage Temperature |
-20~60℃ |
Working Tumidity |
20%~80% |
Storage Tumidity |
10%~90% |
Application |
Indoor |
||
Installation method
Application scenarios
Service Process
FAQ
Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.
