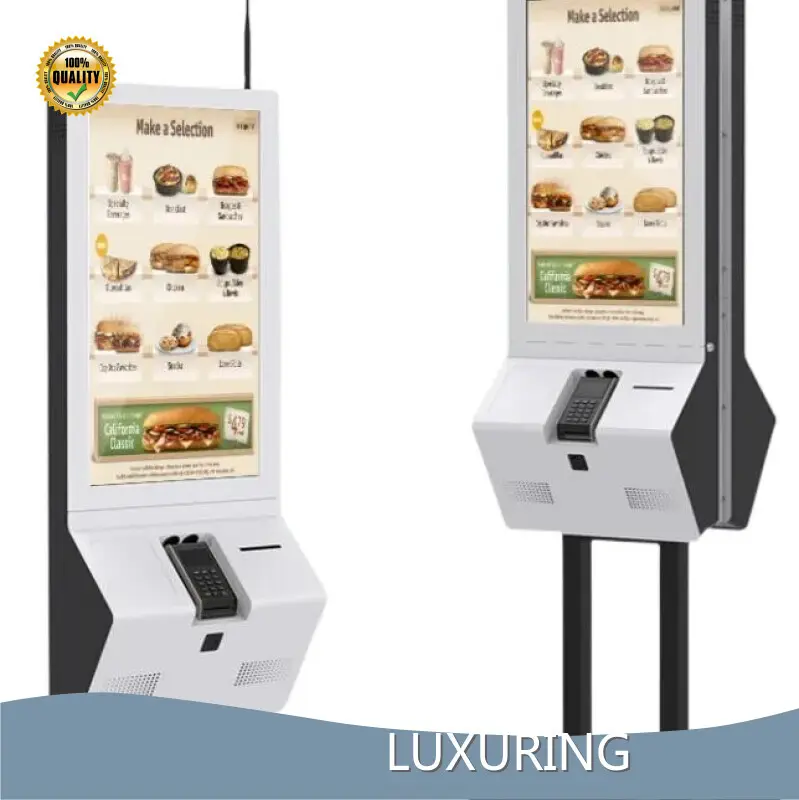

Product details of the interactive digital screens
Product Introduction
LUXURING interactive digital screens is prepared using premium quality raw material and modish technology. LUXURING interactive digital screens is designed and manufactured in accordance with current market codes and guidelines. A small trial order is greatly welcome for our interactive digital screens if you have any interest.
Schematic diagram of self-service ordering and cashier system
Self-service ordering machine hardware components
Product Specifications
Our ordering system can help you improve work efficiency and increase table turnover rate.
Computer Configuration | |||
operating system: Windows7/8/10/11 | |||
CPU: | Celeron J1900/Core i3/5/7 | RAM | 8G |
Storage | 64G/128G | Network | RJ45 Ethernet/WIFI |
Speaker | 5W*2 | USB Port | USB 2.0 port/3.0 port |
Touch Screen | |||
Touch Type: Projective capacitive touch | Response Time: 10ms | ||
LCD | |||
Type | TFT-LCD | Contrast Ratio | 1200:1 |
Screen Size | 32inch | Response Time | 8ms |
Max Resolution | 1920X1080 | Viewing Angle | H178°V178° |
Aspect Ration | 16:9 | Dispplay Colors | 16.7M |
Brightness | 400cd/m² | Refresh Rate | 60Hz |
Panel Life | 30000 hours | ||
Functional Devices | |||
Printer |
Thermal printer with cutter Paper roll: 80mm |
Camera | Optional |
Scanner | 2D,Area-imaging scanner | Card Reader | Provide it yourself |
Power |
|||
Voltage | 100-240VAC,50/60Hz | Power consumption | <120W |
Enclosure |
|||
Material | SPCC | Surface | Powder coating |
Overall Size(mm) |
W540.5*D317*H1302.5(Wall mounting) W548*D515*H1912.5(Single screen flooring) |
Net Weight |
47Kg(Wall mounting) 89Kg(Single screen flooring) |
Package(mm) |
W1475*D475*H790(Wall mounting) W1950*D535*H790(Single screen flooring) |
Gross Weight |
86Kg(Wall mounting) 129Kg(Single screen flooring) |
Application | |||
Working Temperature | 0~40℃ | Storage Temperature | -20~60℃ |
Working Tumidity | 20%~80% | Storage Tumidity | 10%~90% |
Application | Indoor | ||
Installation method
Application scenarios
Service Process
FAQ
Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.
Company Feature
• Our company has established and improved a relatively complete service management system. The professional one-stop services provided by us include product consultation, technical service and after-sales service.
• Our company has established sales outlets throughout the country. Our products are exported to overseas regions, and are favored by consumers.
• LUXURING has a large number of outstanding professional talents, which lays a solid foundation for the development.
LUXURING has been engaged in the R&D and manufacturing of Advertising Screen,Touch Screen Kiosk,Self Service Kiosk,Payment Kiosk,Signal monitor,Whiteboard Screen,LED Poster Screen,Queue Kiosk for years. The products are multi-functional and quality-reliable. Your inquiry and cooperation are warmly welcome!
