Digital Touch Screen Monitor for Information Display Factory Direct Supply
Schematic diagram of self-service ordering and cashier system

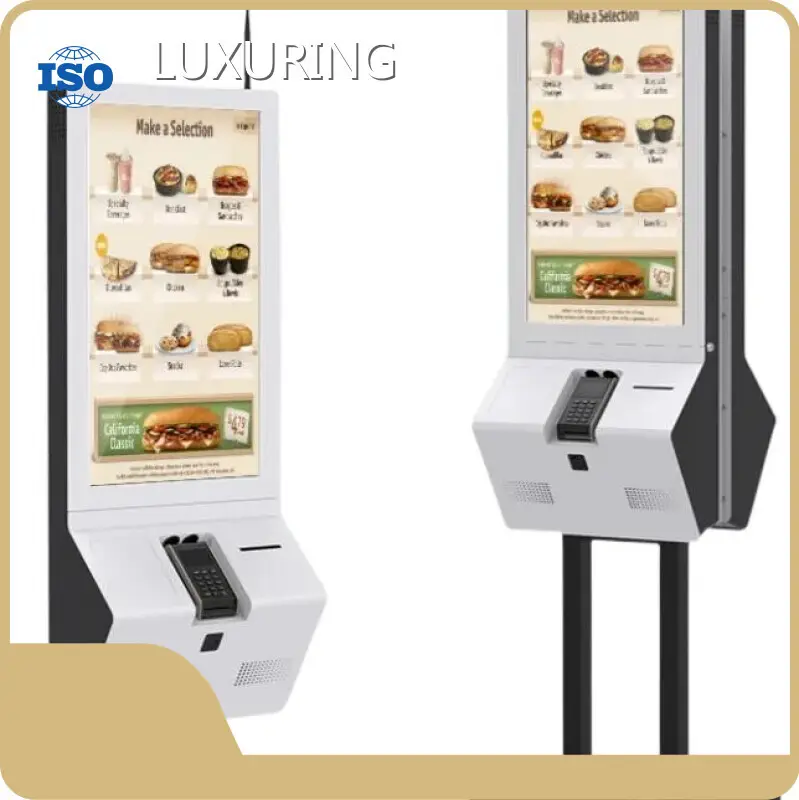

Self-service ordering machine hardware components
Product Specifications
Our ordering system can help you improve work efficiency and increase table turnover rate.
| Computer Configuration | |||
| operating system: Windows7/8/10/11 | |||
| CPU: | Celeron J1900/Core i3/5/7 | RAM | 8G |
| Storage | 64G/128G | Network | RJ45 Ethernet/WIFI |
| Speaker | 5W*2 | USB Port | USB 2.0 port/3.0 port |
| Touch Screen | |||
| Touch Type: Projective capacitive touch | Response Time: 10ms | ||
| LCD | |||
| Type | TFT-LCD | Contrast Ratio | 1200：1 |
| Screen Size | 32inch | Response Time | 8ms |
| Max Resolution | 1920X1080 | Viewing Angle | H178°V178° |
| Aspect Ration | 16：9 | Dispplay Colors | 16.7M |
| Brightness | 400cd/m² | Refresh Rate | 60Hz |
| Panel Life | 30000 hours | ||
| Functional Devices | |||
| Printer |
Thermal printer with cutter Paper roll: 80mm |
Camera | Optional |
| Scanner | 2D,Area-imaging scanner | Card Reader | Provide it yourself |
|
Power |
|||
| Voltage | 100-240VAC,50/60Hz | Power consumption | <120W |
|
Enclosure |
|||
| Material | SPCC | Surface | Powder coating |
| Overall Size(mm) |
W540.5*D317*H1302.5(Wall mounting) W548*D515*H1912.5(Single screen flooring) |
Net Weight |
47Kg(Wall mounting) 89Kg(Single screen flooring) |
| Package(mm) |
W1475*D475*H790(Wall mounting) W1950*D535*H790(Single screen flooring) |
Gross Weight |
86Kg(Wall mounting) 129Kg(Single screen flooring) |
| Application | |||
| Working Temperature | 0~40℃ | Storage Temperature | -20~60℃ |
| Working Tumidity | 20%~80% | Storage Tumidity | 10%~90% |
| Application | Indoor | ||
Installation method
Application scenarios
Service Process
FAQ
Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.
Company Advantages
· digital touch screen monitor gives a stylish, warm and lovely feel.
· As we put great importance on the quality management system, the quality of the product is fully guaranteed to meet the international standards.
· digital touch screen monitor are produced with its best performance.
Company Features
· With outstanding capability in manufacturing digital touch screen monitor, Shenzhen Langxin Electron Co., Ltd is a company spoken highly of by competitors in the market.
· The LUXURING factory is famous for the cutting-edge production technology.
· LUXURING makes its firm decision to be one of the most popular digital touch screen monitor supplier. Please contact us!
Application of the Product
LUXURING's digital touch screen monitor is of excellent quality and is widely used in the industry.
We work hard to develop solutions that best meet the needs of our customers based on their actual situation, so as to help each customer succeed.
