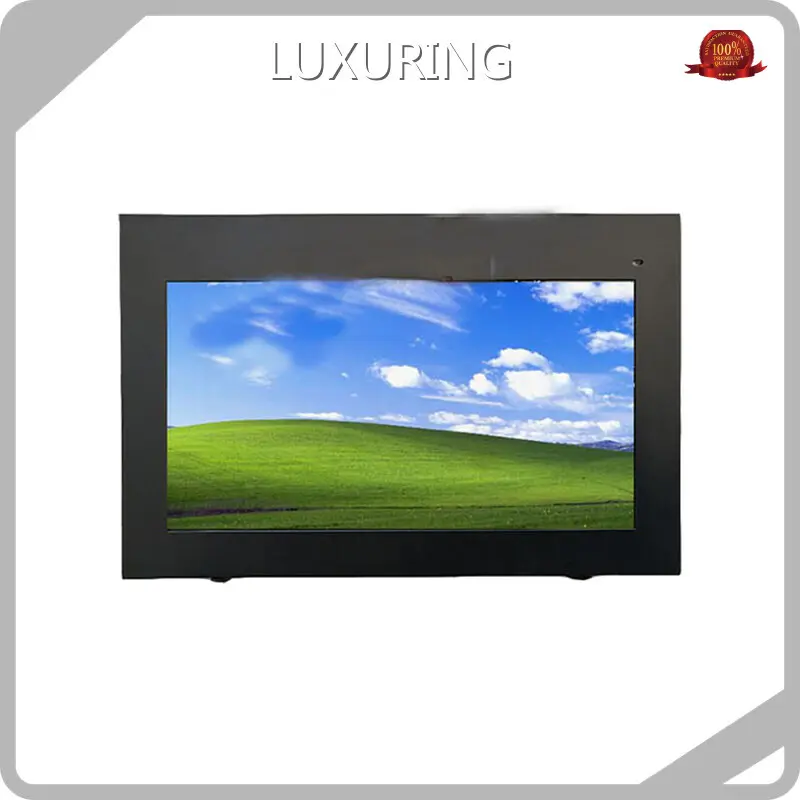

LUXURING Digital Signage for Business 15 Dayswith Custom Services
Product details of the digital signage for business
Product Overview
Complete models of digital signage for business are available with high quality. A team of professionals make sure the quality control system is implemented effectively. The digital signage for business produced by LUXURING is widely used in industry. LUXURING produce digital signage for business with exceptional quality.
Product Introduction
Our digital signage for business is exquisite in workmanship, and we are not afraid to enlarge the details of our products.
Product parameters
|
item |
value |
|
Place of Origin |
China; Guangdong |
|
Brand Name |
LXTOUCH |
|
Model Number |
LX8008 |
|
Panel Size |
27 inch |
|
Max Resolution |
1920(RGB)*1080(FHD) |
|
Product name |
Digital Advertising |
|
Warranty |
12 Months |
|
Size |
32/43/49/55/65 Inch |
|
Usage |
outdoor |
|
Certificate |
CE/CCC/FCC/ROHS/ISO9001 |
|
Operating system |
Support Android\Windows System |
|
Brightness |
1500cd/m2 |
|
CPU |
Android RK 3288 |
|
Resolution |
1920(RGB)*1080(FHD) |
Specification
|
Available screen size: 21.5"32"43"49"55" 65" 75"85"98" (Please request dimensional drawings and other dimensions from online customer service) |
||
|
Display |
Backlight Type |
D-LED |
|
Resolution |
3840*2160 |
|
|
Brightness |
1500-3000cd/m² |
|
|
Contrast Ratio |
4000:1 |
|
|
Response Time |
6ms |
|
|
Frame Rate |
60 Hz |
|
|
Perspective |
178°(H) / 178°(V) |
|
|
Color Saturation (x% NTSC) |
72% |
|
|
Degree Of Color |
1.07B(8bit) |
|
|
Life span |
50,000 hrs |
|
|
S peaker |
2*10W |
|
|
Frontal Protection |
6mm AR laminated glass |
Shielded from 99.99% of the sun's UV raysMore than 50% of the solar radiationThe transmittance reaches more than 93%The reflectivity is below 3%The total heat insulation rate of sunlight is more than 50%Intelligent temperature control system (using imported centrifuge for heat dissipation + industrial heater) |
|
Heat Dissipation System |
Full Intelligent Air Cooling System |
Voltage 24VOperating voltage 20.4-27.6VThe starting voltage is 12VThe average speed is 2400 RPM and the minimum speed is 2160 RPMAverage current 0.26A maximum current 0.312The average access power is 3.12 and the maximum is 3.74Average airflow 74 Minimum airflow 66.6Average static pressure 2.0 Minimum static pressure 1.8Noise 33dbCan automatically adjust the fan speed according to the working temperature, with heating function to meet the normal work ofoutdoor -40-55 degrees |
|
Electrical Part |
Backlight Power Supply |
Based on peak power and reserve 20% redundancy (first-tier brands ) |
|
Automatic Light Sensing |
Automatic photosensitive probe—automatically recognizes the surrounding environment and automatically adjusts screen brightness |
|
|
Lightning Protector |
Chint Lightning Protector |
|
|
AC Contactor |
Chint AC Contactor |
|
|
Microcomputer Timer Switch |
The timer can be set according to time periods. More than 20 groups of time periods can be set. |
|
|
Power Input |
AC 100-240V |
|
|
Total Power |
According to size |
|
|
Touchscreen（Optional） |
Touch Mode |
Capacitive Waterproof Touch Screen |
|
Touch Surface |
Anti-glare AR tempered glass, light transmittance over 95% |
|
|
Touch Resolution |
32767*32767 |
|
|
Service Life |
Single click touch life exceeds 60 million times |
|
|
Touch Body |
Finger |
|
|
Reaction Time |
≤10ms |
|
|
Light Resistance |
≥100000LUX |
|
|
Fault tolerance |
0.1 |
|
|
Powered By |
Single USB powered |
|
|
Host Configuration |
Plan |
Rockchip RK3568(Intel i3 i5 Optional ) |
|
CPU |
RK3568, Quad-core 64-bit Cortex-A55, frequency up to 2.0GHz |
|
|
GPU |
Quad-core Mali-G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D accelerationhardware |
|
|
NPU |
Support 0.8T computing power |
|
|
Memory |
LPDDR4 2GB |
|
|
Built-in storage |
eMMC 32GB |
|
|
interface |
1 USB 2.0, 1 USB 3.0, 1 type-c |
|
|
network card |
100M network card, built-in 150M wireless WIFI |
|
|
Audio |
Built-in 2 8∩10W mid-range speakers |
|
|
CD-ROM drive, camera, microphone |
none |
|
|
Keyboard and mouse |
none |
|
|
Pre-installed system |
Android 11.0 |
|
|
Working Environment |
Fan Powered |
24V |
|
Screen Display And Backlight Power Supply |
24V+12V hybrid power supply 200-400W |
|
|
Operating Temperature |
minus 35℃ to 55℃ |
|
|
Storage Temperature |
minus 35℃ to 55℃ |
|
|
Working Humidity |
10%-75%RH |
|
|
Storage Humidity |
10%-75%RH |
|
|
Structural parameters |
Size |
Please request from online customer service |
|
Net weight of the whole machine |
Please request from online customer service |
|
|
A fixed way |
Wall-mounted/flush-mounted |
|
|
Body |
Hot-dip galvanized steel plate T=1.5+ outdoor double-sided spraying outdoor powder |
|
|
Other |
After-Sales Service |
The whole machine comes with 1-year free warranty and lifetime maintenance. 24-hour after-sales hotline |
|
Transportation |
logistics |
|
|
Accessories |
Power cord, warranty card, manual, certificate |
|
Company Advantages
Shenzhen Langxin Electron Co., Ltd is a comprehensive enterprise, specifically located in shen zhen. We are dedicated to the import, export, R&D, processing and sales of Advertising Screen,Touch Screen Kiosk,Self Service Kiosk,Payment Kiosk,Signal monitor,Whiteboard Screen,LED Poster Screen,Queue Kiosk. With a focus on customers, LUXURING always believes that sincerity-based management brings mutual benefit. Based on the core value, we intend to be efficient, pragmatic, excellent, innovative. Serving every customer wholeheartedly is our constant pursuit. We are committed to providing innovative products and services for customers. Our company has a management team with modern operation idea. Meanwhile, we introduce a large number of experienced and skilled R&D talents. They both provide a strong foundation for manufacturing quality products. LUXURING has been engaged in the production of Advertising Screen,Touch Screen Kiosk,Self Service Kiosk,Payment Kiosk,Signal monitor,Whiteboard Screen,LED Poster Screen,Queue Kiosk for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
The products we produced are of high quality and reasonable price. If needed, please contact us!
