Product details of the touch screen white board
Product Description
With carefully selected materials, our touch screen white board have received much fame until now. Every aspect of the product, such as performance, durability, usability, and so on, has been carefully tested and inspected during the production and before shipment. This product is effectively used for a variety of application purposes.
Product Features
● Interactive Engagement: The interactive whiteboard display fosters active participation, engaging students and enhancing learning outcomes.
● HD Clarity: With high-definition visuals, the display ensures every detail is crisp and clear, optimizing the learning experience.
● Touch-Friendly Interface: The intuitive touch-screen interface allows seamless interaction, making learning more fun and engaging.
● Multi-Media Integration: Easily integrate audio, video, and other multimedia content to enrich lessons and enhance understanding.
● Flexible Annotation: Annotate and highlight content directly on the screen, enhancing the effectiveness of explanations and discussions.
Product Description
● Real-Time Collaboration: Facilitates real-time collaboration between students and teachers, promoting active learning and knowledge sharing.
● Environmental Friendliness: The display offers energy-saving features, contributing to a sustainable learning environment.
● Durable & Reliable: Built with high-quality materials, the display is designed for durability and reliability, ensuring long-term use.
● Easy Connectivity: Seamlessly connect to various devices, allowing teachers to present content from multiple sources with ease.
● Extensive Support & Resources: Comes with comprehensive support and a vast library of educational resources, making it a one-stop solution for teaching needs.
Basic Product Functions

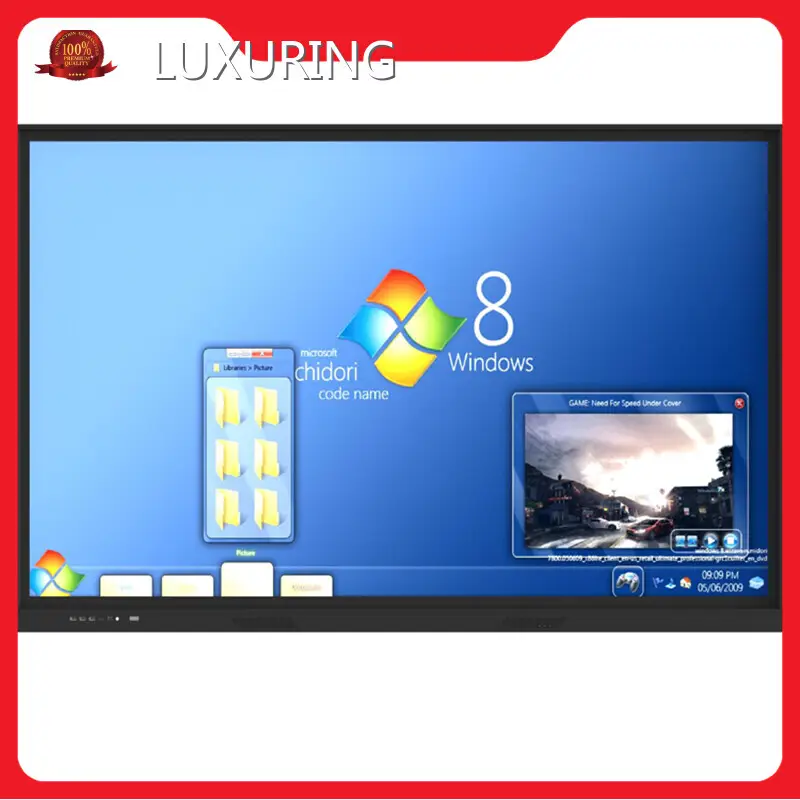

Product display
(The product is updated and upgraded from time to time, and the actual version shall prevail)
Product parameters
Screen size |
55"/65"/75"/85"/86"/98"/100"/110" |
Display screen type |
LCD display screen |
Physical resolution |
55 inches 1920 (H) x 1080 (V) (2K/4K optional) 65 inches -110 inches 3840 (H) x 2160 (V) |
Display color |
10bit, 1.07B |
Refresh rate |
60 Hz |
Brightness |
320cd/m2 |
Contrast |
5000:1 |
Viewing angle (degree) |
178 degree |
Display screen protection |
4mm fully tempered high explosion-proof glass |
Backlight lifespan |
50000 hours |
Android |
|
CPU |
Amlogic T982 64bit -GPU ARM Mali-G52 MP2(2EE) max:1.9Ghz (Quad Core CPU) Quad Core Cortex-A55 (optional for other processors and motherboards) |
System |
Android 11.0 embedded system |
ROM |
DDR3 4G memory (optional 8G) |
Storage |
32GB storage space (optional high-speed 128GB) |
External storage |
SD card can expand up to 128GB; USB 2.0/3.0 supports up to 1T |
Details |
|
Image format |
PAL/SECAM/NTSC (Option) |
Sound standard |
BG/DK/I/L |
Store |
200 channal |
Decoding |
3D digital comb filters, 3D image motion denoising, 3D motion adaptive comb filtering, etc |
Speaker specification |
10W/8 ohms x 2 speakers |
Audio feature |
balance, automatic volume control, surround sound, equalizer |
Input Port |
AV port: 1 group (AV IN: 1 group) |
Color difference terminals |
1 set (three in one port) |
VGA IN: |
1 set |
VGA AUDIO IN |
1 set |
RJ45 |
1 group |
TV port |
1 set |
TOUCH PORT |
2 groups (including 1 front channel) |
HDMI ports |
3 sets (including 1 front channel) |
USB ports |
5 sets (including front USB 2.0 * 2, USB 3.0 * 1 |
Output port |
|
Coaxial port |
1 set |
HDMI OUT |
1 set (customized solution, not standard) |
Earphones |
1 set |
Communication port RS232 |
1 set |
Touch Screen details |
|
Touch embedding method |
Built in integrated, non external |
Touch sensing technology |
Infrared induction recognition touch technology (20 points) |
Writing method |
Fingers, touch pens, or other non transparent objects with a diameter of no less than 5mm (multi-point 8mm) |
Cursor speed |
120 points/s |
Positioning accuracy |
over 90%, touch area of ± 2mm |
Communication interface |
B-type USB male |
Touch resolution |
32767 * 32767 |
Touch count |
Theoretically infinite |
Computer response |
system automatic recognition; ≤ 15ms |
Driver |
UVC,free driver |
Others |
|
TV functions |
Cable TV viewing and playback function |
USB multimedia file playback function |
|
Android 11.0 embedded system |
|
Touch function |
Supports 20 point computer touch operation |
Supports image enlargement, reduction, and rotation |
|
After supporting the switching of various signal sources, the touch function is available |
|
Support controlling signal sources, volume, and other menus through touch while displaying the status of each signal source |
|
Other functions |
Remote control TV power on function |
Support touch menu, enabling return button, menu operation, task preview, channel switching, and volume control |
|
Functions such as adjustment, quick electronic whiteboard operation, etc |
|
Safe mode: Can control USB usage permissions on smart tablets, prohibit or allow USB data reading |
|
To prevent accidental touch, a touch lock can be set for the smart tablet to lock the PC touch function |
|
Using application encryption and soft central control: Accessing the screen touch central control through gestures, achieving seamless communication between any message |
|
Under the channel number, it can achieve return, homepage, process termination, signal switching, annotation, brightness, Volume, etc |
|
Supports wireless WiFi and wired LAN |
|
Supports Android on/off, PC controlled by Android, integrated screen on/off, system on/off, energy-saving three |
|
Integrated support with embedded high-definition camera for taking photos and recording functions (requires optional support, optional solution) |
|
Shell and appearance |
aluminum alloy frame corner block design, front button, front port |
Package |
|
Name |
qty |
Interactive intelligent teaching all-in-one machine |
1 |
touch pen |
1 |
manual |
1 |
1.8-meter power cord |
1 |
remote controller |
1 |
Wall mounted parameters
Wall mounted parameters |
||||
Name |
Size |
Load bearing |
Material |
Quantity |
Chassis fixing plate |
850*195*31mm |
MAX 100KG |
SPCC |
1 PCS |
Hook installation plate |
600*30*12mm |
MAX 100KG |
SPCC |
2PCS |
Wall hanging thickness 33-43mm |
Wall mounted parameters
Wall mounted parameters |
||||
Name |
Size |
Load bearing |
Material |
Quantity |
Chassis fixing plate |
850*195*31mm |
MAX 100KG |
SPCC |
1 PCS |
Hook installation plate |
600*30*12mm |
MAX 100KG |
SPCC |
2PCS |
Wall hanging thickness 33-43mm |
Product Size
